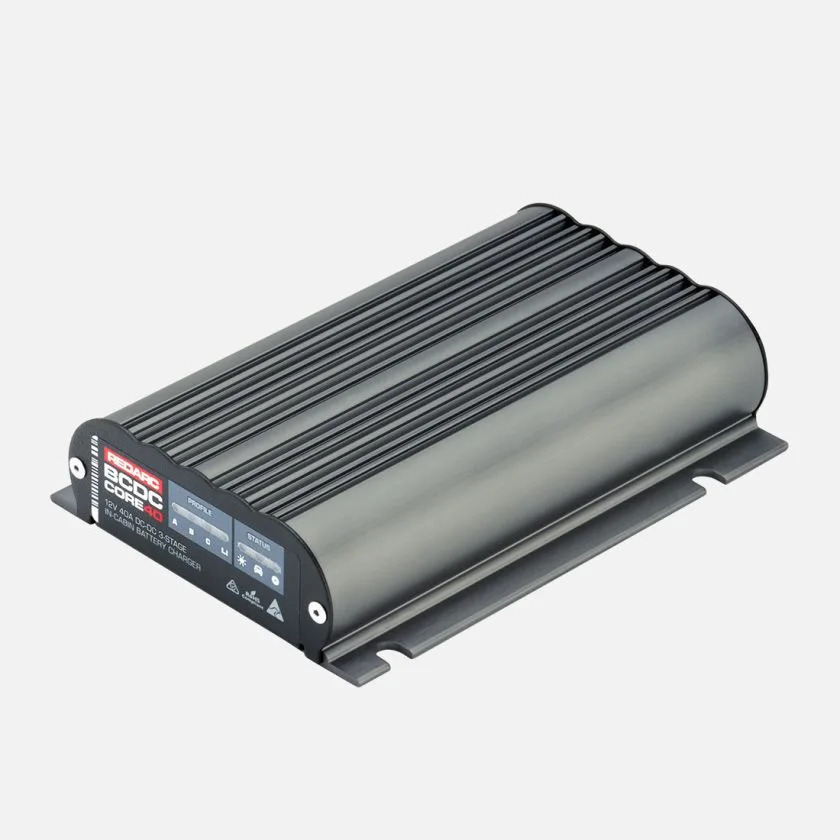

BCDC CORE IN-CABIN 40A DC BATTERY CHARGER

$439.00
RRP $499.00
SAVE $60.00 (12%)
In Stock


Calculate Shipping

In-Cabin 12V 40A DC to DC battery charger with Solar. Lithium Compatible.

OVERVIEW

REDARC's BCDC Core 40A DC to DC In-Cabin Battery Charger is the next evolution of the legendary BCDC platform that has been powering off-grid adventures for over 10 years.

The BCDC Core is the perfect DC to DC charging solution for in-cabin, canopy, or battery box setups where dust and weatherproofing isn’t required. Each BCDC Core features REDARC’s tried and tested dual input DC charging tech plus an MPPT solar regulator and Green Power Priority all in the familiar and compact BCDC form factor. These features allow the BCDC Core to efficiently charge from both the alternator and solar simultaneously, ensuring maximum charge capacity no matter the situation.

Looking for a DC-DC Charger for an under bonnet installation? The REDARC BCDC Classic range in 25amp40amp and 50amp models could be what you're looking for.

MAX CHARGE EFFICIENCY

The BCDC Core features a Maximum Power Point Tracking (MPPT) solar regulator and 'Green Power Priority'. With these features the BCDC Core will charge from both solar and the alternator simultaneously, maximising its charge rate and minimising the load on your alternator, saving fuel.

COMPACT & SILENT

With no loud fans or relays and a small form factor, the BCDC Core can be tucked away, leaving room in the cabin for more important things. Don't ruin the look of your interior with bulky electronics. Hide it under the rear floor, behind a side panel or under the seats and make your power set up look like it was meant to be there.

LITHIUM READY

With chemistry specific charging profiles, including lithium the BCDC Core ensures your batteries are ready for your next adventure. The award-winning technology in the BCDC Core has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*
As a guide the BCDC Core 40A is typically used for lead acid battery banks over 200Ah and lithium batteries over 100Ah. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For smaller batteries, REDARC recommends the BCDC Core 25A

*Large capacity battery banks may require a few cycles to fully charge.

BACKED BY THE BEST

The BCDC Core is designed, tested and manufactured in Australia and is backed by our leading technical support and national REDNetwork certified installer network.

If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.

FEATURES

  • Suitable for in-cabin and canopy installations only
  • Compact form factor
  • Simultaneous DC and solar charging with Green Power Priority
  • Maximises the performance and life of your auxiliary battery
  • Suits 12V/24V standard and variable voltage/smart alternators
  • Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
  • Suitable for use on vehicles with conventional alternator charging systems

To find out the best dual battery setup for your needs use the free REDARC Dual Battery Selector here.

Click here to view the product flyer

(BCDCN1240)

SPECIFICATIONS

More Information
GTIN_BARCODE 9338628007042
BRAND REDARC
BATTERY CHEMISTRY Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
CONTINUOUS RATING 40A
POWER TYPE - AC DC DC TO DC
NO LOAD CURRENT <100mA
SOLAR INPUT VOLTAGE 9 - 32V
SOLAR SWITCH ON VOLTAGE 9V
STANDBY CURRENT <8mA
OPERATING TEMPERATURE -10°C to 80°C
WEIGHT 1 kg
HEIGHT 37 mm
WIDTH 120 mm
DEPTH | LENGTH 165 mm
WARRANTY 2 Years
CONNECTOR TYPE Bare wire
INPUT VOLTAGE 9 - 32V
OUTPUT VOLTAGE 12V DC
MAX. CHARGING VOLTAGE 15.3V
MAX. RATED OUTPUT CURRENT 40A
NOMINAL OUTPUT POWER 600W
INPUT FUSE RATING 60A (Not supplied) REDARC FK60 recommended
OUTPUT FUSE RATING 60A (Not supplied) REDARC FK60 recommended
SKU BCDCN1240
